ENGLISH

• Frame - Hogtech Northern Spirit 3” stretch , 46° rake
• Fork - Tolle +21”(1230 mm), Hogtech tree 7°, CC 220
• Trail - 70 mm
• Seat/ height - Black Leather, 570 mm
• Ground clearance - 100 mm ( 4” )
• Wheel base - 2160 mm CC axles
• Front wheel - Erixon Stainless19” x 2,15”, Tire 90/90-19
• Rear wheel - Erixon Stainless17” x 6” Tire 180/60-17, 200/55-17
• Front brake - ISR 6 p. caliper/ 270 Ø fl. rotor (Hogtech design)
• Rear brake - ISR 6 p. caliper/ 48^th.spr disc brake (Hogtech design)

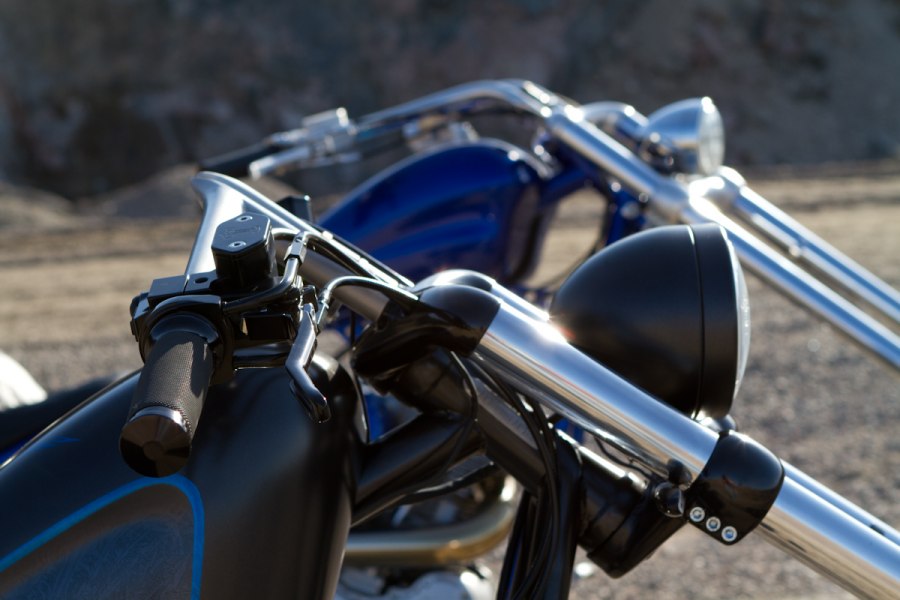

• Hand controls - ISR 14 Ø p, adjustable grip (Hogtech design)
• Foot brake M-cyl. - ISR 15,87 Ø p, adjustable unit (Hogtech design)
• Fuel tank/capacity - Parker (Hogtech Design), 11 L/Res 1,5 L
• Oil tank/capacity - Hogtech , 3 L (3.2 qts)
• Engine - S&S (Hogtech design alt/gen Round cyl/heads).
• Displacement - V-Twin 1640 CC (100”)
• Stroke & Bore - 107.95 mm x 98.425 mm (4.250 x 3.875)
• Compression ratio - 9,6:1
• Camshaft - S&S 520G (Special)
• Exhausts - BSL Stainless, Catalyst
• HP/Trq - 70 Hp ( 4300 rpm)/ 135 Nm (2450 rpm)
• Fuel system - S&S E Carb, (emission/ fixed jets)
• Transmission - Baker OD6 speed (.86 final ratio)
• Primary drive - Belt drive 2” (Hogtech design), Ball bearing clutch
• Final drive - 530 chain, 23/48^th. Sprockets
• Electrics - MG Speedo, M-Lock & M-Unit
• Ignition - Electronic single fire S&S
• Charging output - charging by Cycle electrics
• Battery - 18 amp/310 CCA
• Total weight (Wet) - 240kg / Max permissible mass 420kg
